Qt-UI

Signals and Slots. In Qt, we have an alternative to the callback technique: We use signals and slots. A signal is emitted when a particular event occurs. Qt's widgets have many predefined signals, but we can always subclass widgets to add our own signals to them. A slot is a function that is called in response to a particular signal. Queued Connections. A queued signal-slot connection is nothing else but an asynchronous function call. Conceptually, the routing function QMetaObject::activate does not call the slot directly any more, but creates a command object from the slot and its arguments and inserts this command object into the event queue. When it is the command object. A default connection would produce a queued signal-slot connection because the connected objects live in different threads; remember that QThread does not live in the thread it creates. Still it is safe to access ClockThread::timerHit from the worker thread because ClockThread::timerHit is private and only touches local variables and a. With queued connections, the parameters must be of types that are known to Qt's meta-object system, because Qt needs to copy the arguments to store them in an event behind the scenes. Call qRegisterMetaType to register the data type before you establish the connection.

Queued Connections

‹ Scoped Lock ● Producer Consumer Example ›

How to pass the produced soup to a consumer, e.g. to the main thread?

Passing messages between threads is easy with Qt. We simply pass objects through a signal/slot connection via so called queued connections.

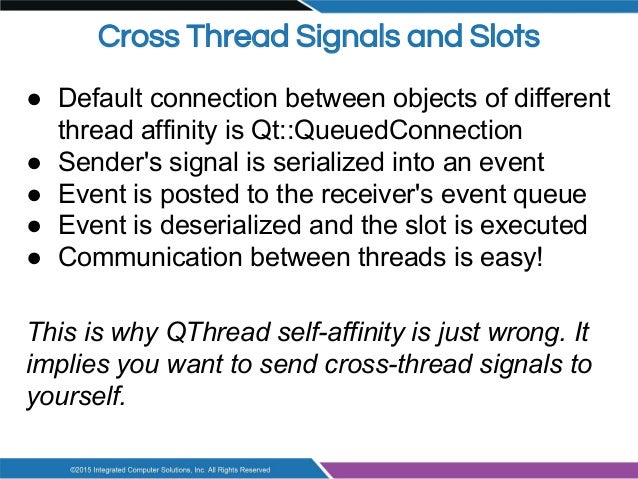

Qt Signal Slot Queuedconnection

Passing a message through a regular slot is done via parametrization:

message sender:

message receiver:

Then the receiver is invoked from the same thread as the sender.

To invoke the receiver on a different thread, we connect the signal and the slot with the option of a queued connection:

connect(sender, SIGNAL(signal(QString &)),
receiver, SLOT(slot(QString &)),
Qt::QueuedConnection);

Then a triggered signal in the sender thread has the effect of a copy of the parameters being stored in the event queue. The sender returns immediately after the copy has been posted. The copy is delivered to the receiver when the receiver thread yields to the event loop.

This scheme works as long as

  • The type of the passed parameters is a class with a copy constructor.
  • Either the sender or the receiver have an event loop running.
  • The type of the parameter is known to Qt.

If the data type is unknown we register it before connecting the respective signal:


‹ Scoped Lock ● Producer Consumer Example ›

This blog is part of a series of blogs explaining the internals of signals and slots.

In this article, we will explore the mechanisms powering the Qt queued connections.

Summary from Part 1

In the first part, we saw that signalsare just simple functions, whose body is generated by moc. They are just calling QMetaObject::activate, with an array of pointers to arguments on the stack.Here is the code of a signal, as generated by moc: (from part 1)

QMetaObject::activatewill then look in internal data structures to find out what are the slots connected to that signal.As seen in part 1, for each slot, the following code will be executed:

So in this blog post we will see what exactly happens in queued_activateand other parts that were skipped for the BlockingQueuedConnection

Qt Event Loop

A QueuedConnection will post an event to the event loop to eventually be handled.

When posting an event (in QCoreApplication::postEvent),the event will be pushed in a per-thread queue(QThreadData::postEventList).The event queued is protected by a mutex, so there is no race conditions when threadspush events to another thread's event queue.

Once the event has been added to the queue, and if the receiver is living in another thread,we notify the event dispatcher of that thread by calling QAbstractEventDispatcher::wakeUp.This will wake up the dispatcher if it was sleeping while waiting for more events.If the receiver is in the same thread, the event will be processed later, as the event loop iterates.

The event will be deleted right after being processed in the thread that processes it.

An event posted using a QueuedConnection is a QMetaCallEvent. When processed, that event will call the slot the same way we call them for direct connections.All the information (slot to call, parameter values, ...) are stored inside the event.

Copying the parameters

The argv coming from the signal is an array of pointers to the arguments. The problem is that these pointers point to the stack of the signal where the arguments are. Once the signal returns, they will not be valid anymore. So we'll have to copy the parameter values of the function on the heap. In order to do that, we just ask QMetaType. We have seen in the QMetaType article that QMetaType::create has the ability to copy any type knowing it's QMetaType ID and a pointer to the type.

To know the QMetaType ID of a particular parameter, we will look in the QMetaObject, which contains the name of all the types. We will then be able to look up the particular type in the QMetaType database.

queued_activate

We can now put it all together and read through the code ofqueued_activate, which is called by QMetaObject::activate to prepare a Qt::QueuedConnection slot call.The code showed here has been slightly simplified and commented:

Upon reception of this event, QObject::event will set the sender and call QMetaCallEvent::placeMetaCall. That later function will dispatch just the same way asQMetaObject::activate would do it for direct connections, as seen in Part 1

BlockingQueuedConnection

BlockingQueuedConnection is a mix between DirectConnection and QueuedConnection. Like with aDirectConnection, the arguments can stay on the stack since the stack is on the thread thatis blocked. No need to copy the arguments.Like with a QueuedConnection, an event is posted to the other thread's event loop. The event also containsa pointer to a QSemaphore. The thread that delivers the event will release thesemaphore right after the slot has been called. Meanwhile, the thread that called the signal will acquirethe semaphore in order to wait until the event is processed.

It is the destructor of QMetaCallEvent which will release the semaphore. This is good becausethe event will be deleted right after it is delivered (i.e. the slot has been called) but also whenthe event is not delivered (e.g. because the receiving object was deleted).

A BlockingQueuedConnection can be useful to do thread communication when you want to invoke afunction in another thread and wait for the answer before it is finished. However, it must be donewith care.

The dangers of BlockingQueuedConnection

You must be careful in order to avoid deadlocks.

Obviously, if you connect two objects using BlockingQueuedConnection living on the same thread,you will deadlock immediately. You are sending an event to the sender's own thread and then are locking thethread waiting for the event to be processed. Since the thread is blocked, the event will never beprocessed and the thread will be blocked forever. Qt detects this at run time and prints a warning,but does not attempt to fix the problem for you.It has been suggested that Qt could then just do a normal DirectConnection if both objects are inthe same thread. But we choose not to because BlockingQueuedConnection is something that can only beused if you know what you are doing: You must know from which thread to what other thread theevent will be sent.

The real danger is that you must keep your design such that if in your application, you do aBlockingQueuedConnection from thread A to thread B, thread B must never wait for thread A, or you willhave a deadlock again.

When emitting the signal or calling QMetaObject::invokeMethod(), you must not have any mutex lockedthat thread B might also try locking.

A problem will typically appear when you need to terminate a thread using a BlockingQueuedConnection, for example in thispseudo code:

Qt Signal Slot Queued Connection Settings

You cannot just call wait here because the child thread might have already emitted, or is about to emitthe signal that will wait for the parent thread, which won't go back to its event loop. All the thread cleanup information transfer must only happen withevents posted between threads, without using wait(). A better way to do it would be:

The downside is that MyOperation::cleanup() is now called asynchronously, which may complicate the design.

Qt signal slot queued connection download

Conclusion

Qt Signal Slot Queued Connection Tool

This article should conclude the series. I hope these articles have demystified signals and slots,and that knowing a bit how this works under the hood will help you make better use of them in yourapplications.
